Pickup RV/Cargo Trailers

53 ft x 102″ Pro RV, Cargo and 3 Car Transport Trailer – standard equipment includes:
2-8,000 lb Dexter Torflex axles with hydraulic disc brakes;   4-265×16″ (E) radial tires on stylish 8-bolt spoke wheels,  2-speed heavy duty jacks,  10 ft Tuff-Nuff aluminum self-storing loading ramps,  1-18x18x36″ mounted steel tool box,  drilled center track for dolly wheel and ball stands,  4-2 headed ball stands ( 2 & 2 5/16″), 1-8,000 lb super duty worm gear winch with deep cycle battery and power shutoff,  e-track tie down,  8-wheel bonnet tie downs,  Dexter electric/hydraulic disc brake system,  1  1/2″ treated wood floor,  heavy duty over the road wiring system with rubber mounted sealed lights including mid turn lights,  rear RV plug,  no deck over 5th wheel, all steel hot dipped galvanized after steel fabrication

Trailer loaded with cargo trailers, you can see how far the tongue is in front of the wood deck of the trailer.

Loaded trailer using ball stand under trailer tongue and e-track wheel bonnet tie down straps to hold trailer in place. Our ball stands are double pinned to the drilled center track rail.

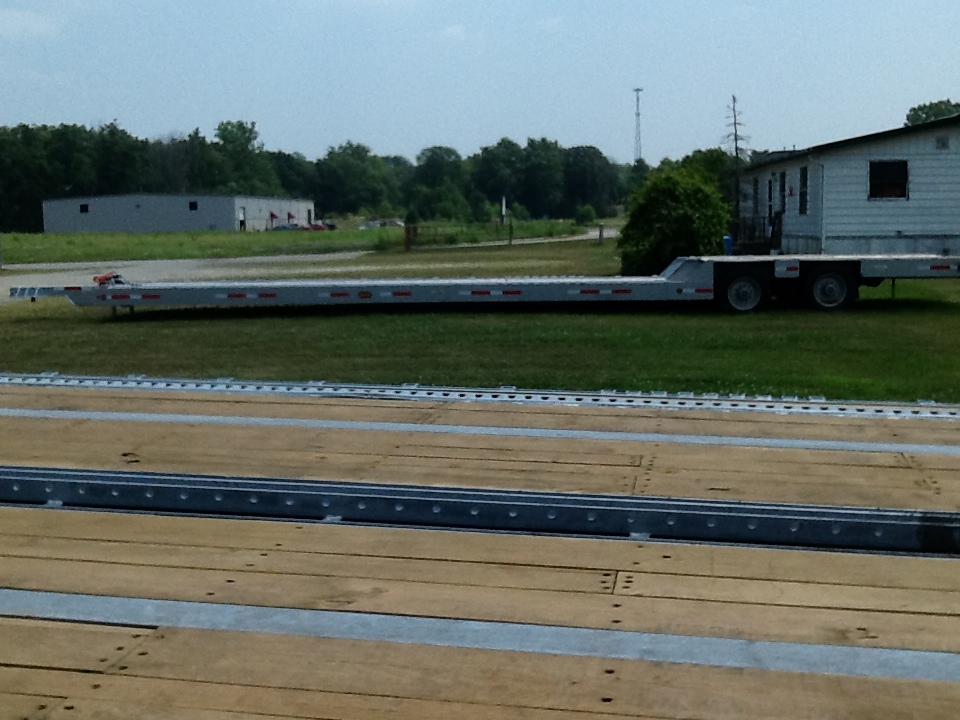

Showing wood floor, drilled center track for ball stands and e-track side tie down rail.

Spare tire carrier – Option

Aluminum loading ramps in special ramp storage area

Drilled center track runs the length of the trailer. You can also see the winch cable extended down the length of the trailer.

The winch is mounted on the front of the trailer, out of the way of loads.

Standard 36″x18″x18″ deep mounted tool box.   We can upgrade the tool box to 48″, add a second tool box and/or upgrade to stainless doors.

Haul and Tow truck beds

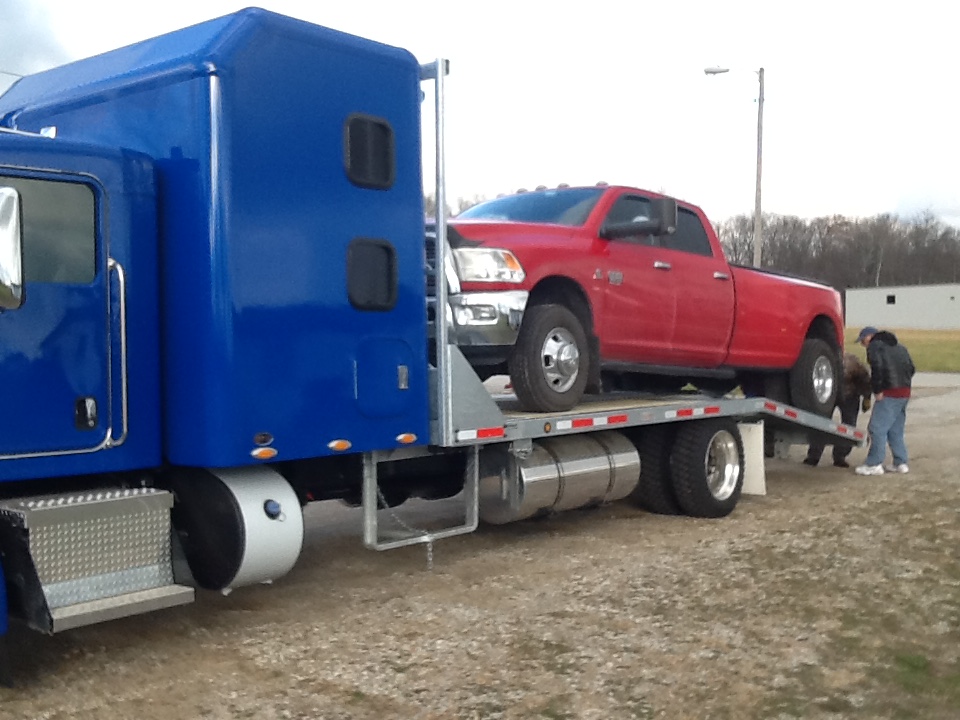

Haul and tow truck bed on semi, loaded with 1 vehicle and you can still pull a trailer behind the truck bed.

Haul and tow bed, 23 ft long,  on semi chassis with standard aluminum loading ramps, optional 4 ft stainless tool box in stead of std 3 ft with black door, optional spare tire carrier.
